Greenfix DIY extensive green roof for quick installation
With a Greenfix extensive green roof, you achieve a lightweight and low-maintenance green roof structure for flat and gently sloping roofs. You combine water buffering, additional insulation, and protection of the roofing membrane in a single system that is suitable for both new construction and renovation.
Due to the limited substrate layer and vegetation, you opt for an efficient, low-load solution, ideal for projects where technical simplicity and durability are central.
Technical advice for your green roof
Contact us for support with assembly, sizing, and choosing the right Greenfix system for your roof project.
Features of the DIY system
The system is designed for simplicity and efficiency:
- ready-to-use modules or cassettes
- fast installation without complex layer buildup
- limited roof load
- ideal for smaller projects and renovations
- aesthetic and green finish
Characteristics of the Greenfix DIY green roof
- water retention volume: 25 l/m²
- saturated weight: 53 kg/m²
- total construction height: 8 cm
- roof pitch: 0 – 20°
- accessibility: walkable
- maintenance: limited
- vegetation choice: sedum, grass and herbs
Applications and considerations
You use DIY green roofs for smaller surfaces, outbuildings, or projects where speed and simplicity are key. Despite the simplicity, a correct substrate and water drainage remain important.
In the absence of a roof slope, use the Greenfix Retain drainage and retention board (20 l/m²) again, optionally filled with granulate for walkable applications.

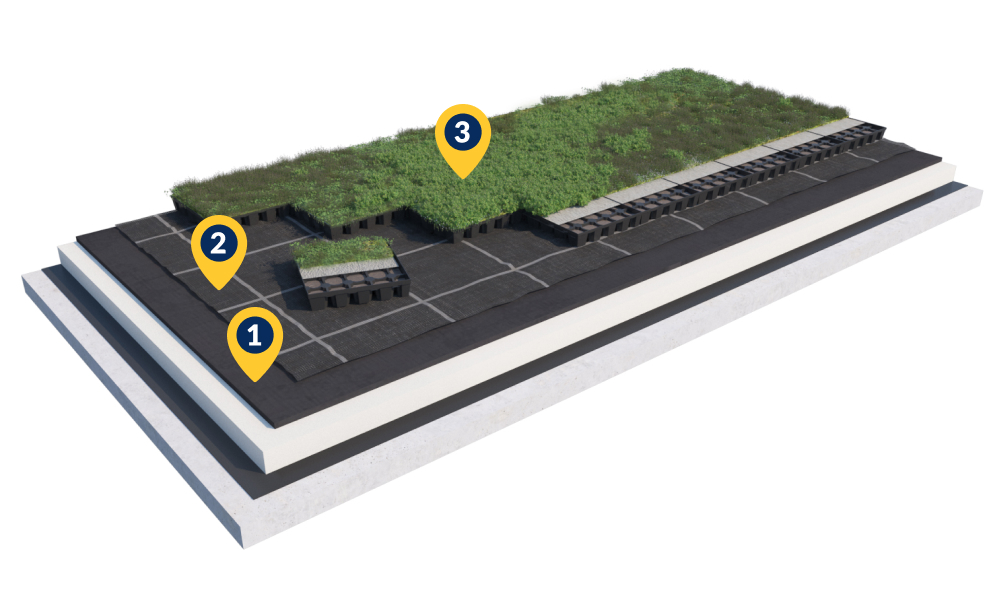

Build-up of Greenfix extensive green roof
Greenfix sedum tray
Ready-to-use green roof system. Composed of a substrate layer, drainage layer, and water buffer, and 8 slow-growing sedum species, fully rooted. Height: 80 mm
Greenfix Protect
Protective layer made of recycled textile fibers to protect the roofing membrane against mechanical damage. Greenfix Protect also has a leveling function.
Greenfix root barrier film
Optional membrane to be installed if the roof waterproofing is not root-resistant.
FAQ
1. For which applications is DIY suitable?
For smaller roofs, outbuildings and simple renovations.
2. Is technical knowledge required?
Limited, but proper preparation remains important.
3. What about drainage?
Proper drainage and water buffering remain essential.
4. Can you combine DIY with other systems?
Yes, depending on the roof construction.
5. When do you use Greenfix Retain?
For flat roofs or extra buffering.
